Square Post Fence

Square Post Panel Fencing High quality surfaces
Our square post panel fencing systems have the best stainless steel surface currently available on the market.Panels and
posts are galvanized and optionally powder coated.Powder coating of galvanized surfaces gives the product the desired
aesthetic quality and prevents the oxidation of zinc.


Mounting method:
The panels are mounted on post sides by means of special mounting clips that ensure an easy erection and setting adjustment.
We ensure all necessary mounting accessories as well as a broad assortment of custom-made gates and
wickets.

Profiled Panels
Lattice panels are made of vertical and horizontal 5mm or 4mm wires. Horizontal V profiles whose number depends on the height
of the panel are an essential reinforcing element. The mesh has 50x200 mm straight apertures and 50x50 mm profiled apertures.
The width of the panels is sta ndard, 2,500 mm, and the height range is 630-2,430 mm.The size and layout of the apertures are
designed to increase security by preventing intruders from scaling the fencing.
Technical parameters:

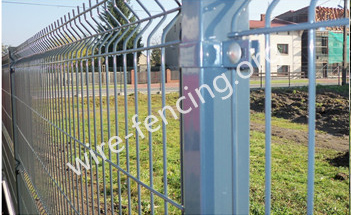

Panel posts

The panels are fixed to posts made from square steel profiles to ensure rigidity of the structure. The posts are 60x40 mm and
topped with plastic post caps. They are supplied with clamps, screws, washers, rubber inserts and sheer nuts made from
stainless steel. Post foundation spread at centres is 2,580-2,590 mm.


Colors
The panels are made of galvanised steel wires, unpainted or painted in a colour with the powder method. The fence posts are
galvanised, then painted in a colour also with the powder method. Standard painting colour - green RAL 6005. Other colours
available at the customer's request.


Square Post Panel Fencing Additional fixtures:
· posts
· gates
· pathway gates
· system barbed wire stretchers
· fencing disassembly protection accessories
· end, corner, and intermediate clamps
· prefabricated underpinning and connectors
