Welded Gabion

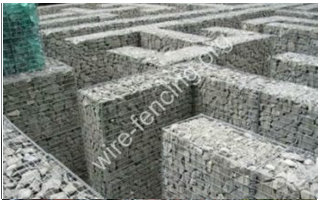

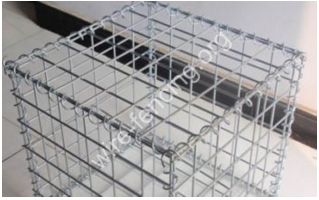

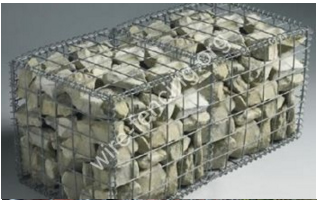

Welded gabion box are wire mesh containers welded with high quality steel wire,then connected by spirals,assembled with spacers/stiffeners.They can be filled on site with hard durable stone materials to form mass gravity retaining structures.Owing to their inflexibility,welded gabion box can adapt to differential settlement or be used in water courses.
Length (mm) | Width (mm) | Height (mm) | Dia (mm) | Mesh opening (mm) | Spirasls (mm) | Tolerance |
2000 | 1000 | 300 | 3-6 | 50*50 75*75 50*100 100*100 | 300 500 600 1000 2000 | ±5% |
3000 | 1000 | 300 | ||||
4000 | 1000 | 300 | ||||
2000 | 1000 | 500 | ||||
3000 | 1000 | 500 | ||||
4000 | 1000 | 500 | ||||
1000 | 1000 | 1000 | ||||
1500 | 1000 | 1000 | ||||
2000 | 1000 | 1000 | ||||
3000 | 1000 | 1000 | ||||
4000 | 1000 | 1000 |
